Electro Permanent Magnetic Chuck

View more specifications Electro Permanent Magnetic Chuck for you

Product Name：	Electro Permanent Magnetic Chuck
Model No：	EPS
Place of Origin:	Zhejiang
Trademark:	REALPOWER / OEM
Min. Order:	2/pcs
Delivery Date:	25days
Packing:	word case/carton
Transportation:	air/sea/express
Payment Type:	T/T,L/C
Export Markets:	global

Description

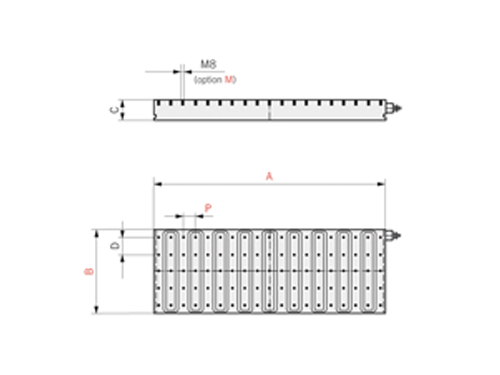

EPS series Standard Pole Electro-Permanent Magnetic Chuck
For grinding application of all sizes of jobs and for horizontal spindle surface grinding machines as the main cutting thrust is towards the length of the chuck, poles at right angle of the wheel give more gripping of the job.
No heat build up or deformation provides high precision accuracy
No electricity required to keep the Electro Permanent Magnetic Chuck ON.
All Metal Top Plate of Brass and Steel lamination provides full active magnetic area.
Variable power makes it possible to adjust the magnetic force.
Middle transverse pole arrangement, suitable for milling work .The magnetic field is without any stray fields, preventing magnetization of the tool.
Use: For universal machine and heavy milling.
-laminations 3 mm brass / 12 mm steel.
- min. thickness of workpiece: 20 mm
- min. size of workpiece: 95 x 95 mm2
- nominal holding force: 150 N/cm2
EPS2050,EPS2060,EPS2560,EPS2575,EPS25100,EPS25150,EPS3060,EPS3075,EPS3090,EPS30100,
EPS30120,EPS30150,EPS4060,EPS4090,EPS5075,EPS50100,EPS50150,magnetic chuck,magnetic tools,electric magnetic chuck
